Primary tasks:
- Confocal microscopy
- 3D imaging
- Super-resolution imaging

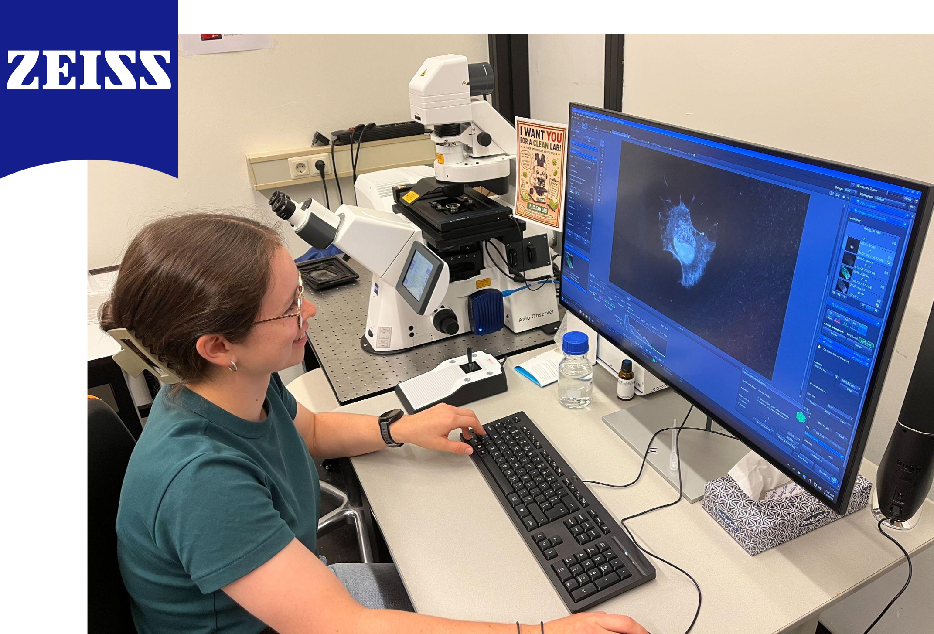

Microscope: Axio Observer 7 with Definite Focus 3
Stage: motorized, Märzhäuser
Piezo-Z: yes, stage
Objectives:
Plan-Neofluar 5x/0.16 WD=18.5mm, Air
Plan-Apochromat 20x/0.8 WD=0.55mm, Air
C-Apochromat 40x/1.20 WD=0.28mm, Water Immersion
Light sources:
Laser lines: 405 nm (5 mW), 488 nm (10mW), 561 nm (10mW), 640 nm (5 mW)
LED Viluma 5: 385 nm, 469 nm, 555 nm, 631 nm
Detectors:
Camera
Axiocam 305 mono (D), 5.07 megapixel, 2464×2056,
SONY IMX264 CMOS sensor, 8/12 bit, 65% QE
MA-PMT: two
GaAsP: one
AiryScan: one
DIC: yes
Temperature control and CO2: no
Software: ZEN Blue v3.13
Installation: 2026
Location: O-525
Contact Person: Ilya Grigoriev
